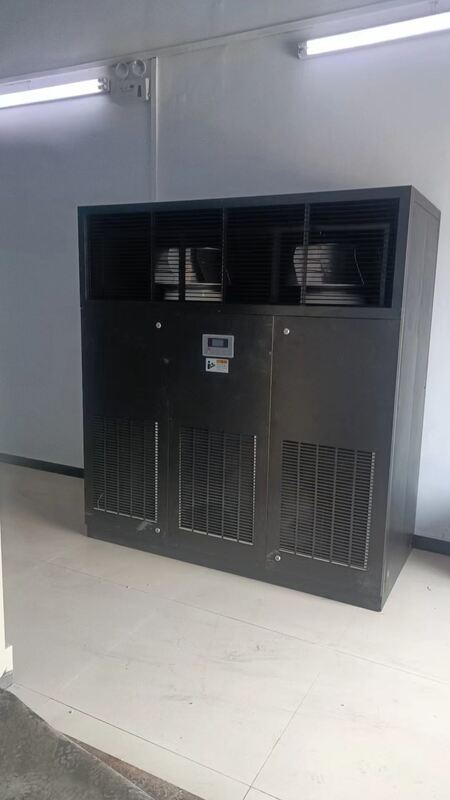

Side Supply Glycol Cooled Precision Air Conditioning 80kW High EER Cooling System for Large IDC Data Center
Designed for hyperscale and enterprise-level Internet Data Centers (IDCs), this 80kW Side Supply Glycol Cooled Precision Air Conditioning System sets the benchmark for high-density cooling. By utilizing a facility-wide glycol loop, this unit decouples the cooling process from ambient outdoor conditions, delivering exceptional Energy Efficiency Ratios (EER) and unmatched reliability. Its side-discharge design is optimized for close-coupled row cooling, making it the ideal solution for large-scale data centers demanding maximum uptime and minimal PUE.
Applications
Hyperscale & Colocation Data Centers (IDCs)
High-Performance Computing (HPC) Clusters
AI & Machine Learning Server Farms
Large Telecommunication Central Offices
Financial Trading Floors & Disaster Recovery Sites
Cleanrooms requiring strict environmental control
Custom- Made Welcome
Support 220V/380V 60Hz customization for Peru, Chile, and Mexico markets.
| No. | name | Model parameters | |||||
|---|---|---|---|---|---|---|---|
| 1 | Unit performance | Indoor unit model | S80 | ||||
| 2 | Air volume (m³/h) | 21500 | |||||
| 3 | Cooling capacity (kW) | 80 | |||||
| 4 | Number of compressors (units) | 2 | |||||
| 5 | Operating mode | Constant temperature and humidity type | |||||
| 6 | Compressor type | Scroll compressor | |||||
| 7 | External static pressure (Pa) | 30 | |||||
| 8 | Power supply (V) | 380/50HZ | |||||
| 9 | refrigerant | R410A | |||||
| 10 | Expansion valve | Thermostatic expansion valve | |||||
| 11 | Electric heating type | PTC | |||||
| 12 | Electric heating power (kW) | 30 | |||||
| 13 | Humidifier type | wet film | |||||
| 14 | Humidification rate (kg/h) | 13 | |||||
| 15 | Humidification power (kW) | 0.5 | |||||
| 16 | Temperature control range (°C) | 17-30 | |||||
| 17 | Humidity control range (RH%) | 45-75 | |||||
| 18 | Temperature control accuracy (°C) | ±2 | |||||
| 19 | Humidity control accuracy (RH%) | ±5 | |||||
| 20 | Indoor unit | Evaporator type | Copper tube with aluminum fins | ||||
| 21 | air filter | Primary effect | |||||
| 22 | Indoor fan type | AC | |||||
| 23 | External dimensions (mm) | Width | 1750 | ||||
| 24 | deep | 850 | |||||
| 25 | high | 1900 | |||||
| 26 | Unit weight (Kg) | 900 | |||||
Project Case
