| Brand Name: | Hailos |
| Model Number: | HLS-10A |
| MOQ: | 1 |
| Price: | $3000~$8000 |
| Delivery Time: | 5-8 weeks |
| Payment Terms: | T/T |

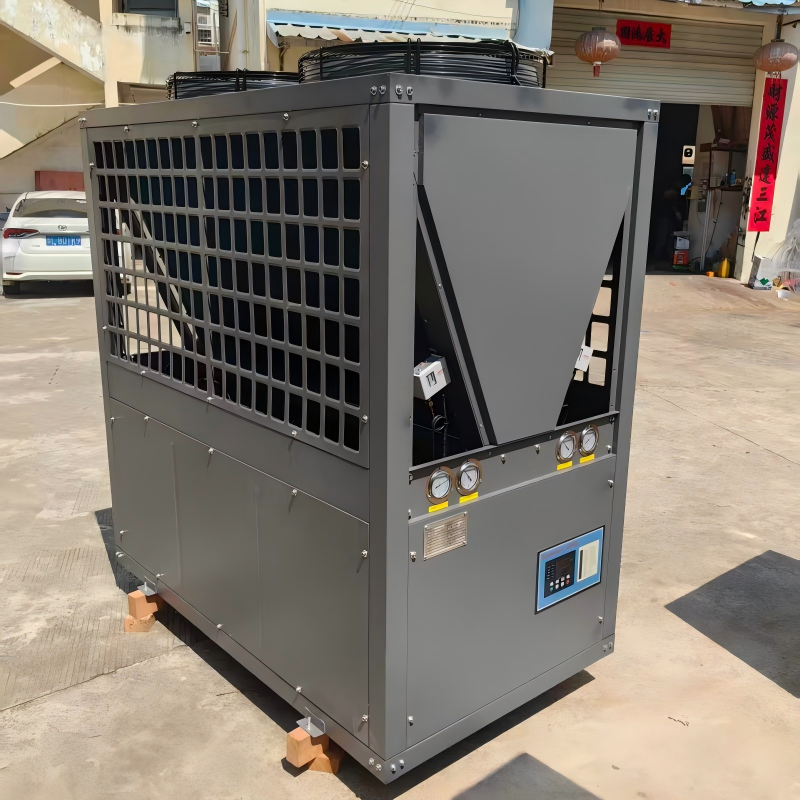

Air Cooled Industrial Water Chiller with Scroll Compressor for Industrial Process Cooling
This air cooled scroll water chiller is designed for diverse industrial process cooling. Equipped with reliable scroll compressors, the unit delivers stable chilled water output and precise temperature control. Air-cooled design eliminates cooling tower installation, saving layout cost and space. Built-in efficient condenser and intelligent microcomputer controller, it runs steadily for plastic molding, electroplating, chemical and machinery processing. Optional communication function facilitates centralized system management.
| No. | Model | HLS-10A | |
| 1 | Cooling capacity/kW | 28.01 | |
| 2 | Power supply | 380V-50Hz | |
| 3 | Refrigerant | Type | R410a |
| Control methods | Externally balanced thermostatic expansion valve | ||
| Cooling air volume m³/h | 10600 | ||
| 4 | Compressor | Type | inverter frequency, fully enclosed vortex type |
| Compressor power | 3.75*2 | ||
| 5 | Chilled water | Type | Water tank type |
| Water tank L | 80 | ||
| Chilled water volume m³/h | 4.82 | ||
| Pipe diameter | 1-1/2" | ||
| 6 | Water pump | Power/kW | 1.5 |
| Head (kPa) | 205 | ||
| 7 | Total power | kw | 10.2 |
| 8 | External dimensions | Length x Width x Height (mm) | 1540*780*1690 |
| 9 | Unit weight | kg | 370 |
Project Case
A3: Yes, warm welcome customers to visit our workshop and test equipment on site. We support live video factory tour if you cannot come to China temporarily.
