| Brand Name: | Hailos |
| Model Number: | Air Cooled Chiller |
| MOQ: | 1 |
| Price: | $5000~$50000 |
| Delivery Time: | 5-8 weeks |
| Payment Terms: | T/T |

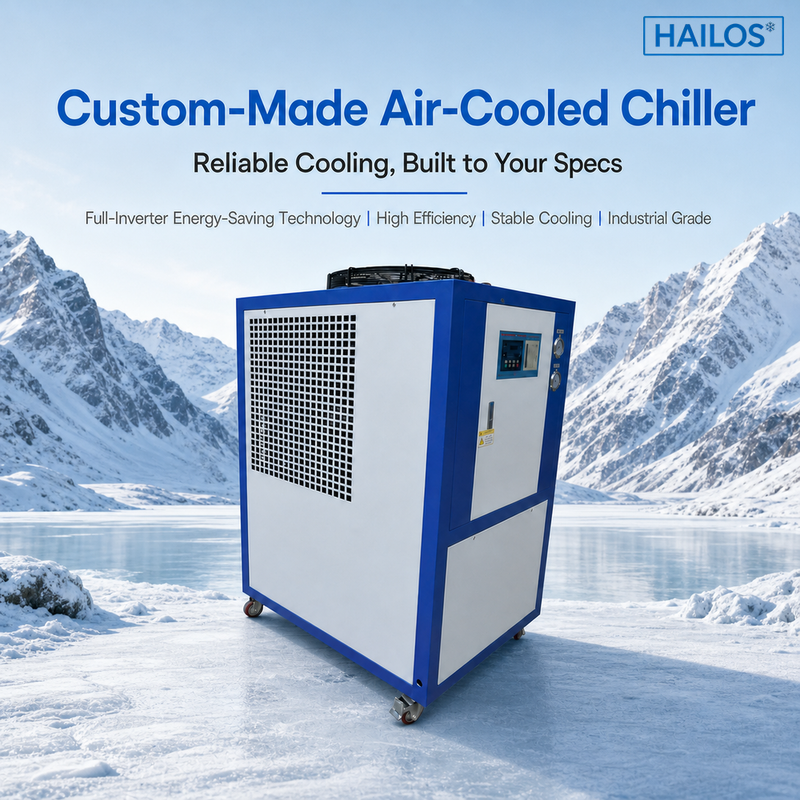

High Efficiency Air Cooled Screw Chiller Energy Saving Process Chiller for Factory Production Line
Power your factory production line with unmatched efficiency and reliability using our High Efficiency Air Cooled Screw Chiller. Engineered for demanding industrial processes, this energy-saving process chiller utilizes advanced semi-hermetic screw compressors and intelligent control logic to deliver precise, stable chilled water while minimizing operational costs. Designed to operate continuously in harsh factory environments, it is the ideal solution for plastic injection molding, chemical processing, food & beverage production, and pharmaceutical manufacturing. Reduce your energy bills, improve product quality, and ensure uninterrupted production with our robust and efficient cooling system.
| Parameter | Model | HLS-10A | HLS-12A | HLS-15A | HLS-20A | HLS-25A | HLS-30A | HLS-40A | HLS-50A |
| Cooling capacity | KW 50HZ/60HZ |
28.01 32.78 |
33.79 39.53 |
44.15 51.65 |
59.08 69.12 |
71.72 83.91 |
87.20 102.02 |
113.58 132.89 |
135.49 158.52 |
| Kcal/h 50HZ/60HZ |
24089 28184 |
29059 33999 |
37965 44419 |
50805 59442 |
61683 72169 |
74992 87741 |
97675 11428 |
116521 136330 |
|
| Power Supply | Volt | 3N-380V/415V-50HZ/60HZ | |||||||
| Refrigerant | Name | R22/R404a/R407c | |||||||
| Fill (kg) |
4.3*2 | 5*2 | 6.5*2 | 4.3*4 | 10.5*2 | 8*3 | 8*4 | 10.5*4 | |
| Control Method | External equalizer thermal expansion valve | ||||||||
| Compressor | Type | Scroll or Piston | |||||||
| Power (KW) |
3.75*2 | 4.5*2 | 5.5*2 | 3.75*4 | 9.4*2 | 7.5*3 | 7.5*4 | 9.4*4 | |
| Cooling air flow | m³/h | 10600 | 12600 | 15800 | 21000 | 26000 | 32000 | 42000 | 52800 |
| Chilled Water | water flow m³/h |
4.82 | 5.81 | 7.6 | 10.16 | 12.34 | 15.1 | 19.53 | 23.3 |
| water tank (L) |
80 | 80 | 100 | 200 | 200 | 250 | 400 | 400 | |
| Pipe diameter | 1-1/2" | 1-1/2" | 2" | 2" | 2-1/2" | 2-1/2" | 3" | 3" | |
| Waterpump | Power (KW) |
1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 3 | 3.75 | 3.75 |
| Head ( kpa) |
205 | 205 | 205 | 220 | 220 | 240 | 240 | 240 | |
| Dimension | Length (mm) |
1540 | 1600 | 1780 | 2030 | 2580 | 2580 | 2030 | 2180 |
| Width ( mm) |
780 | 820 | 830 | 910 | 910 | 910 | 1800 | 2000 | |
| Height (mm) |
1690 | 1770 | 1750 | 1925 | 2020 | 2020 | 2000 | 2100 | |
| Weight | kg | 370 | 520 | 590 | 790 | 880 | 1100 | 1280 | 1420 |
Project Case
A3: Yes, warm welcome customers to visit our workshop and test equipment on site. We support live video factory tour if you cannot come to China temporarily.
