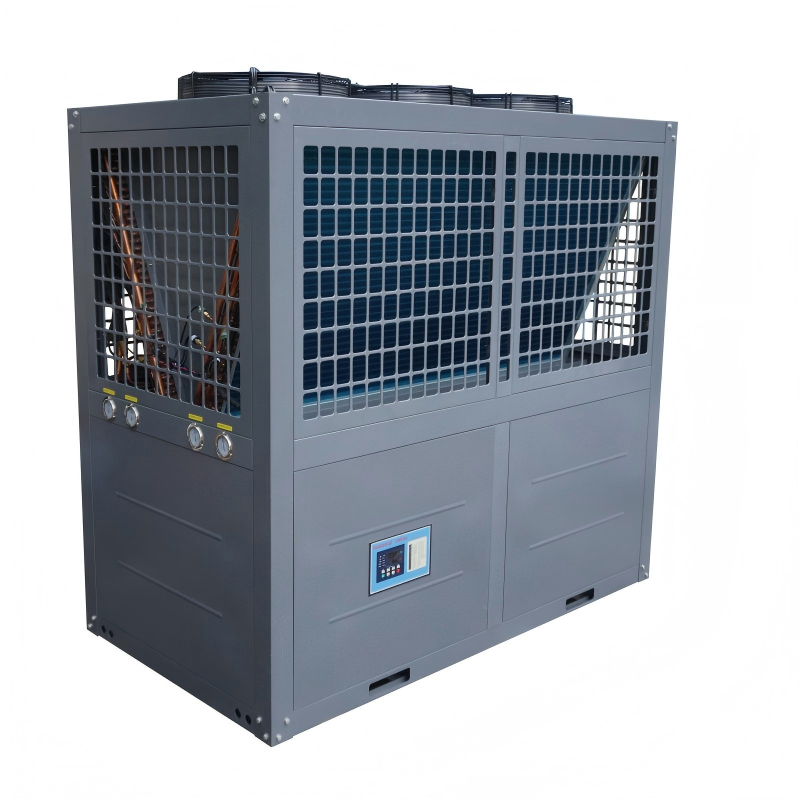

Air Cooled Scroll Chiller 35kW Industrial Water Cooling Unit For Injection Molding Machine Process Cooling
Boost your production efficiency and product quality with our 35kW Air Cooled Scroll Chiller. Specifically engineered for injection molding machines, this industrial-grade water cooling unit provides a stable and precise source of chilled water to cool molds, hydraulics, and process water. By rapidly removing heat from the molding process, it shortens cycle times, reduces part warpage, and prevents machine overheating. Its self-contained, air-cooled design eliminates the need for cooling towers, making it the ideal plug-and-play solution for plastic factories, food processing plants, and industrial workshops.
| Parameter | Model | HLS-10A | HLS-12A | HLS-15A | HLS-20A | HLS-25A | HLS-30A | HLS-40A | HLS-50A |
| Cooling capacity | KW 50HZ/60HZ |
28.01 32.78 |
33.79 39.53 |
44.15 51.65 |
59.08 69.12 |
71.72 83.91 |
87.20 102.02 |
113.58 132.89 |
135.49 158.52 |
| Kcal/h 50HZ/60HZ |
24089 28184 |
29059 33999 |
37965 44419 |
50805 59442 |
61683 72169 |
74992 87741 |
97675 11428 |
116521 136330 |
|
| Power Supply | Volt | 3N-380V/415V-50HZ/60HZ | |||||||
| Refrigerant | Name | R22/R404a/R407c | |||||||
| Fill (kg) |
4.3*2 | 5*2 | 6.5*2 | 4.3*4 | 10.5*2 | 8*3 | 8*4 | 10.5*4 | |
| Control Method | External equalizer thermal expansion valve | ||||||||
| Compressor | Type | Scroll or Piston | |||||||
| Power (KW) |
3.75*2 | 4.5*2 | 5.5*2 | 3.75*4 | 9.4*2 | 7.5*3 | 7.5*4 | 9.4*4 | |
Cooling air flow |
m³/h | 10600 | 12600 | 15800 | 21000 | 26000 | 32000 | 42000 | 52800 |
| Chilled Water | water flow m³/h |
4.82 | 5.81 | 7.6 | 10.16 | 12.34 | 15.1 | 19.53 | 23.3 |
| water tank (L) |
80 | 80 | 100 | 200 | 200 | 250 | 400 | 400 | |
| Pipe diameter | 1-1/2" | 1-1/2" | 2" | 2" | 2-1/2" | 2-1/2" | 3" | 3" | |
| Waterpump | Power (KW) |
1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 3 | 3.75 | 3.75 |
| Head ( kpa) |
205 | 205 | 205 | 220 | 220 | 240 | 240 | 240 | |
| Dimension | Length (mm) |
1540 | 1600 | 1780 | 2030 | 2580 | 2580 | 2030 | 2180 |
| Width ( mm) |
780 | 820 | 830 | 910 | 910 | 910 | 1800 | 2000 | |
| Height (mm) |
1690 | 1770 | 1750 | 1925 | 2020 | 2020 | 2000 | 2100 | |
| Weight | kg | 370 | 520 | 590 | 790 | 880 | 1100 | 1280 | 1420 |
Project Case
A3: Yes, warm welcome customers to visit our workshop and test equipment on site. We support live video factory tour if you cannot come to China temporarily.
