| Brand Name: | Hailos |
| Model Number: | Air Cooled Chiller |
| MOQ: | 1 |
| Price: | $5000~$50000 |
| Delivery Time: | 5-8 weeks |
| Payment Terms: | T/T |

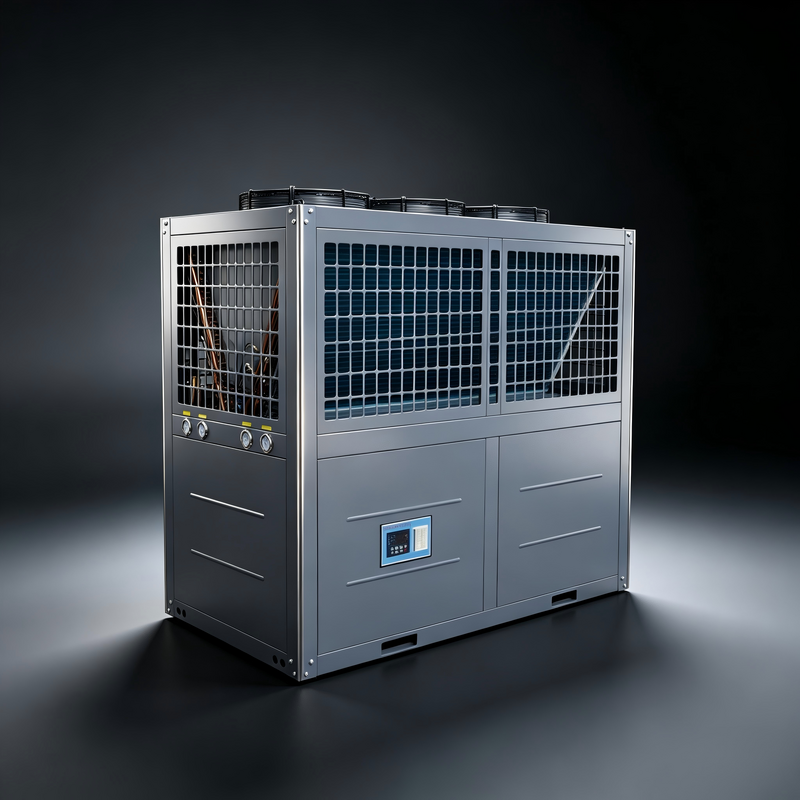

Protect your high-precision investments with our Compact All-In-One Air Cooled Chiller. Engineered specifically for the rigorous demands of Laser Cutters, CNC Machines, and Engraving Equipment, this unit delivers reliable, precision cooling in a space-saving footprint. Featuring an integrated water tank, high-pressure pump, and advanced PLC control system, it offers true plug-and-play operation. By maintaining a constant fluid temperature, it prevents thermal drift, extends the lifespan of your spindles and laser tubes, and ensures flawless cut quality and machining accuracy.
| Parameter | Model | HLS-10A | HLS-12A | HLS-15A | HLS-20A | HLS-25A | HLS-30A | HLS-40A | HLS-50A |
| Cooling capacity | KW 50HZ/60HZ |
28.01 32.78 |
33.79 39.53 |
44.15 51.65 |
59.08 69.12 |
71.72 83.91 |
87.20 102.02 |
113.58 132.89 |
135.49 158.52 |
| Kcal/h 50HZ/60HZ |
24089 28184 |
29059 33999 |
37965 44419 |
50805 59442 |
61683 72169 |
74992 87741 |
97675 11428 |
116521 136330 |
|
| Power Supply | Volt | 3N-380V/415V-50HZ/60HZ | |||||||
| Refrigerant | Name | R22/R404a/R407c | |||||||
| Fill (kg) |
4.3*2 | 5*2 | 6.5*2 | 4.3*4 | 10.5*2 | 8*3 | 8*4 | 10.5*4 | |
| Control Method | External equalizer thermal expansion valve | ||||||||
| Compressor | Type | Scroll or Piston | |||||||
| Power (KW) |
3.75*2 | 4.5*2 | 5.5*2 | 3.75*4 | 9.4*2 | 7.5*3 | 7.5*4 | 9.4*4 | |
| Cooling air flow | m³/h | 10600 | 12600 | 15800 | 21000 | 26000 | 32000 | 42000 | 52800 |
| Chilled Water | water flow m³/h |
4.82 | 5.81 | 7.6 | 10.16 | 12.34 | 15.1 | 19.53 | 23.3 |
| water tank (L) |
80 | 80 | 100 | 200 | 200 | 250 | 400 | 400 | |
| Pipe diameter | 1-1/2" | 1-1/2" | 2" | 2" | 2-1/2" | 2-1/2" | 3" | 3" | |
| Waterpump | Power (KW) |
1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 3 | 3.75 | 3.75 |
| Head ( kpa) |
205 | 205 | 205 | 220 | 220 | 240 | 240 | 240 | |
| Dimension | Length (mm) |
1540 | 1600 | 1780 | 2030 | 2580 | 2580 | 2030 | 2180 |
| Width ( mm) |
780 | 820 | 830 | 910 | 910 | 910 | 1800 | 2000 | |
| Height (mm) |
1690 | 1770 | 1750 | 1925 | 2020 | 2020 | 2000 | 2100 | |
| Weight | kg | 370 | 520 | 590 | 790 | 880 | 1100 | 1280 | 1420 |
