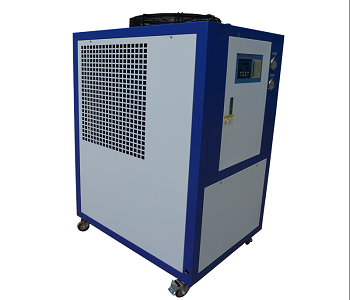

Precision Temperature Control Air Cooled Chiller Mini Air Cooled Chiller For Medical & Lab Test Equipment
Achieve laboratory-grade thermal stability with our Mini Precision Air Cooled Chiller. Engineered specifically for sensitive Medical Devices and Analytical Laboratory Equipment, this compact unit delivers exceptionally stable chilled water with pinpoint accuracy. Utilizing advanced PID control algorithms and a high-efficiency DC inverter compressor, it maintains your set temperature within ±0.5°C (±0.1°C optional), ensuring your critical instruments perform flawlessly. Its small footprint allows it to fit conveniently under a bench or beside equipment, providing a reliable, quiet, and energy-efficient cooling source for your most demanding applications.
| Parameter | Model | HLS-10A | HLS-12A | HLS-15A | HLS-20A | HLS-25A | HLS-30A | HLS-40A | HLS-50A |
| Cooling capacity | KW 50HZ/60HZ |
28.01 32.78 |
33.79 39.53 |
44.15 51.65 |
59.08 69.12 |
71.72 83.91 |
87.20 102.02 |
113.58 132.89 |
135.49 158.52 |
| Kcal/h 50HZ/60HZ |
24089 28184 |
29059 33999 |
37965 44419 |
50805 59442 |
61683 72169 |
74992 87741 |
97675 11428 |
116521 136330 |
|
| Power Supply | Volt | 3N-380V/415V-50HZ/60HZ | |||||||
| Refrigerant | Name | R22/R404a/R407c | |||||||
| Fill (kg) |
4.3*2 | 5*2 | 6.5*2 | 4.3*4 | 10.5*2 | 8*3 | 8*4 | 10.5*4 | |
| Control Method | External equalizer thermal expansion valve | ||||||||
| Compressor | Type | Scroll or Piston | |||||||
| Power (KW) |
3.75*2 | 4.5*2 | 5.5*2 | 3.75*4 | 9.4*2 | 7.5*3 | 7.5*4 | 9.4*4 | |
Cooling air flow |
m³/h | 10600 | 12600 | 15800 | 21000 | 26000 | 32000 | 42000 | 52800 |
| Chilled Water | water flow m³/h |
4.82 | 5.81 | 7.6 | 10.16 | 12.34 | 15.1 | 19.53 | 23.3 |
| water tank (L) |
80 | 80 | 100 | 200 | 200 | 250 | 400 | 400 | |
| Pipe diameter | 1-1/2" | 1-1/2" | 2" | 2" | 2-1/2" | 2-1/2" | 3" | 3" | |
| Waterpump | Power (KW) |
1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 3 | 3.75 | 3.75 |
| Head ( kpa) |
205 | 205 | 205 | 220 | 220 | 240 | 240 | 240 | |
| Dimension | Length (mm) |
1540 | 1600 | 1780 | 2030 | 2580 | 2580 | 2030 | 2180 |
| Width ( mm) |
780 | 820 | 830 | 910 | 910 | 910 | 1800 | 2000 | |
| Height (mm) |
1690 | 1770 | 1750 | 1925 | 2020 | 2020 | 2000 | 2100 | |
| Weight | kg | 370 | 520 | 590 | 790 | 880 | 1100 | 1280 | 1420 |
Project Case
A3: Yes, warm welcome customers to visit our workshop and test equipment on site. We support live video factory tour if you cannot come to China temporarily.
