| Brand Name: | Hailos |
| Model Number: | Air Cooled Chiller |
| MOQ: | 1 |
| Price: | $5000~$50000 |
| Delivery Time: | 5-8 weeks |
| Payment Terms: | T/T |

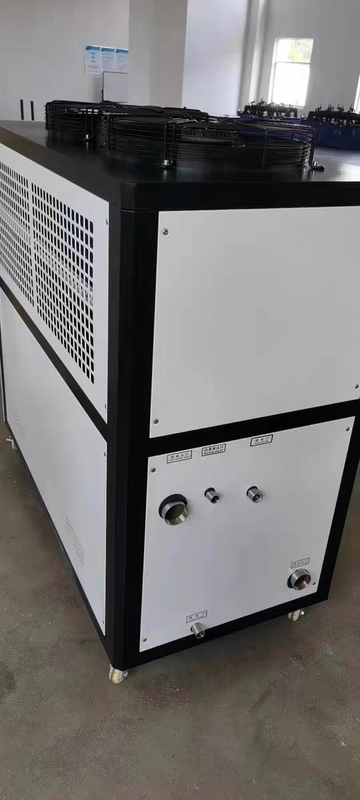

Industrial Scroll Air Cooled Chiller Integrated Water Tank Pump For Plastic Process Cooling
Simplify your plastic production cooling with our Industrial Scroll Air Cooled Chiller, featuring a fully integrated water tank and pump. Designed as a true "plug-and-play" solution, this all-in-one unit eliminates the complexity and cost of installing external water reservoirs and circulation pumps. It delivers a steady stream of precisely chilled water directly to your injection molding machines, extruders, or blow molders. By stabilizing process temperatures, it significantly reduces cycle times, minimizes product defects, and prevents hydraulic overheating—making it the ideal workhorse for any modern plastic manufacturing facility.
| Parameter | Model | HLS-10A | HLS-12A | HLS-15A | HLS-20A | HLS-25A | HLS-30A | HLS-40A | HLS-50A |
| Cooling capacity | KW 50HZ/60HZ |
28.01 32.78 |
33.79 39.53 |
44.15 51.65 |
59.08 69.12 |
71.72 83.91 |
87.20 102.02 |
113.58 132.89 |
135.49 158.52 |
| Kcal/h 50HZ/60HZ |
24089 28184 |
29059 33999 |
37965 44419 |
50805 59442 |
61683 72169 |
74992 87741 |
97675 11428 |
116521 136330 |
|
| Power Supply | Volt | 3N-380V/415V-50HZ/60HZ | |||||||
| Refrigerant | Name | R22/R404a/R407c | |||||||
| Fill (kg) |
4.3*2 | 5*2 | 6.5*2 | 4.3*4 | 10.5*2 | 8*3 | 8*4 | 10.5*4 | |
| Control Method | External equalizer thermal expansion valve | ||||||||
| Compressor | Type | Scroll or Piston | |||||||
| Power (KW) |
3.75*2 | 4.5*2 | 5.5*2 | 3.75*4 | 9.4*2 | 7.5*3 | 7.5*4 | 9.4*4 | |
| Cooling air flow | m³/h | 10600 | 12600 | 15800 | 21000 | 26000 | 32000 | 42000 | 52800 |
| Chilled Water | water flow m³/h |
4.82 | 5.81 | 7.6 | 10.16 | 12.34 | 15.1 | 19.53 | 23.3 |
| water tank (L) |
80 | 80 | 100 | 200 | 200 | 250 | 400 | 400 | |
| Pipe diameter | 1-1/2" | 1-1/2" | 2" | 2" | 2-1/2" | 2-1/2" | 3" | 3" | |
| Waterpump | Power (KW) |
1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 3 | 3.75 | 3.75 |
| Head ( kpa) |
205 | 205 | 205 | 220 | 220 | 240 | 240 | 240 | |
| Dimension | Length (mm) |
1540 | 1600 | 1780 | 2030 | 2580 | 2580 | 2030 | 2180 |
| Width ( mm) |
780 | 820 | 830 | 910 | 910 | 910 | 1800 | 2000 | |
| Height (mm) |
1690 | 1770 | 1750 | 1925 | 2020 | 2020 | 2000 | 2100 | |
| Weight | kg | 370 | 520 | 590 | 790 | 880 | 1100 | 1280 | 1420 |
Project Case
A3: Yes, warm welcome customers to visit our workshop and test equipment on site. We support live video factory tour if you cannot come to China temporarily.
