| Brand Name: | Hailos |
| Model Number: | precision air conditioner |
| MOQ: | 1 |
| Price: | $3000~$8000 |
| Delivery Time: | 5-8 weeks |
| Payment Terms: | T/T |
Modular Upflow Air Cooled Precision Cooling AC 100kW Large Airflow CRAC for Enterprise Data Center Computer Room
Engineered for the rigorous demands of modern Enterprise Data Centers, this 100kW (341,200 BTU/h) Modular Upflow Precision AC represents the pinnacle of large-scale cooling infrastructure. Designed as a building block for high-reliability environments, this unit features a massive airflow capacity and a space-saving vertical discharge design. It is the ideal solution for data centers utilizing solid floors or overhead ductwork, providing N+1 redundancy and unparalleled energy efficiency to protect mission-critical enterprise IT assets.
Applications
Large Enterprise Data Centers (Non-Raised Floor)
Co-location Facilities (Colocation)
Private Cloud Infrastructure
Disaster Recovery & Backup Sites
High-Performance Computing (HPC) Centers
Custom- Made Welcome
Support 220V/380V 60Hz customization for Peru, Chile, and Mexico markets.
| No. | name | Model parameters | |||||
|---|---|---|---|---|---|---|---|
| 1 | Unit performance | Indoor unit model | S99 | ||||
| 2 | Air volume (m³/h) | 24000 | |||||
| 3 | Cooling capacity (kW) | 104.6 | |||||
| 4 | Number of compressors (units) | 2 | |||||
| 5 | Operating mode | Constant temperature and humidity type | |||||
| 6 | Compressor type | Scroll compressor | |||||
| 7 | External static pressure (Pa) | 30 | |||||
| 8 | Power supply (V) | 380/50HZ | |||||
| 9 | refrigerant | R410A | |||||
| 10 | Expansion valve | Thermostatic expansion valve | |||||
| 11 | Electric heating type | PTC | |||||
| 12 | Electric heating power (kW) | 30 | |||||
| 13 | Humidifier type | wet film | |||||
| 14 | Humidification rate (kg/h) | 13 | |||||
| 15 | Humidification power (kW) | 0.5 | |||||
| 16 | Temperature control range (°C) | 17-30 | |||||
| 17 | Humidity control range (RH%) | 45-75 | |||||
| 18 | Temperature control accuracy (°C) | ±2 | |||||
| 19 | Humidity control accuracy (RH%) | ±5 | |||||
| 20 | Indoor unit | Evaporator type | Copper tube with aluminum fins | ||||
| 21 | air filter | Primary effect | |||||
| 22 | Indoor fan type | AC | |||||
| 23 | External dimensions (mm) | Width | 2000 | ||||
| 24 | deep | 1000 | |||||
| 25 | high | 1900 | |||||
| 26 | Unit weight (Kg) | 1000 | |||||

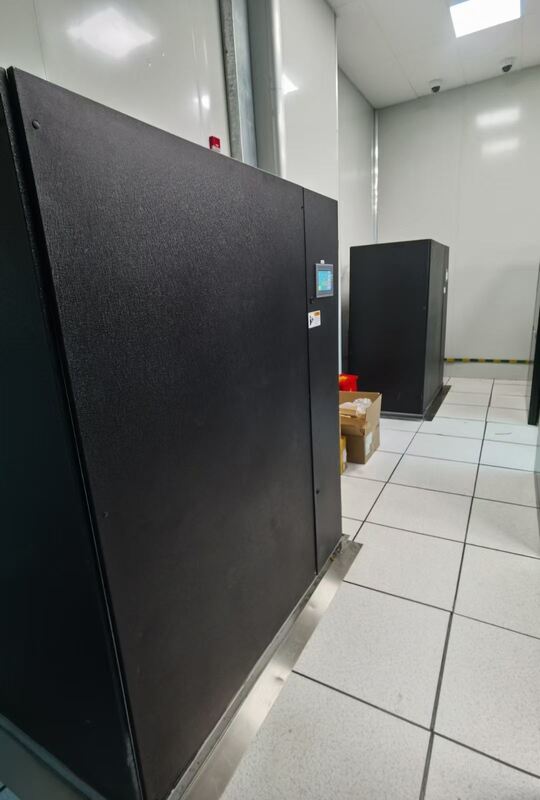

Project Case
A3: Yes, warm welcome customers to visit our workshop and test equipment on site. We support live video factory tour if you cannot come to China temporarily.
