| Brand Name: | Hailos |
| Model Number: | S10 |
| MOQ: | 1 |
| Price: | $3000~$8000 |
| Delivery Time: | 5-8 weeks |
| Payment Terms: | T/T |

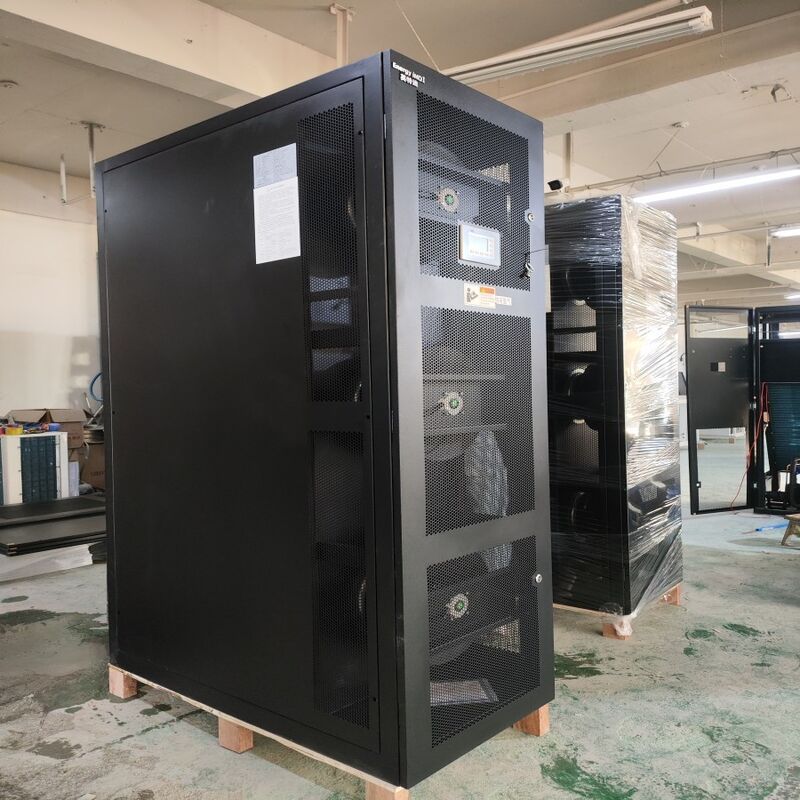

S Series 10 KW Energy Saving High Quality Precision Air Conditioner For Smart Cooling
Product Introduction
This series of room-level precision air conditioners is a professional temperature control device tailored for large equipment rooms, medium and large-sized IDC data centers, and core equipment rooms. The product features a dual mainstream cooling architecture of air-cooled direct expansion and chilled water cooling, allowing for flexible selection of cooling solutions based on the room's spatial structure, heat load, construction conditions, and operation and maintenance needs. It supports multi-functional modular configurations including heating, humidification, dehumidification, and intelligent speed control, comprehensively adapting to the constant temperature and humidity, and precise heat dissipation operation and maintenance needs of data centers in various scenarios. Based on a high AER energy efficiency system architecture and millisecond-level precise temperature control logic, the equipment overcomes the drawbacks of traditional air conditioners' extensive heat dissipation. Through dynamic load adjustment and intelligent energy efficiency matching technology, it significantly reduces the overall energy consumption of the data center, effectively optimizes the data center's PUE value, and helps the data center achieve efficient, energy-saving, and stable normalized operation.
Applications:
| Model | SXX | S04 | S05 | S07 | S10 | S12 | S17 | S20 | S23 | S29 | |
| Cooling capacity | Capacity | KW | 4.4 | 5.5 | 8.1 | 10.4 | 12.8 | 16.9 | 20.1 | 25.6 | 31.3 |
| Sensible cooling capacity | KW | 4.3 | 5.2 | 7.6 | 10 | 12.5 | 16.1 | 19 | 23.1 | 30.3 | |
| Compressor | Form | Rotor/Vortex | |||||||||
| Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| Fan | Type | AC/EC rear tilt centrifugal fan | |||||||||
| Air flow | m³/h | 1350 | 1550 | 2300 | 2800 | 3000 | 5250 | 5800 | 6150 | 10040 | |
| Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | ||
| Heater | Form | PTC ceramic electric heating | |||||||||
| Heating capacity | KW | 3 | 3 | 3 | 4 | 6 | 6 | 10 | 12 | 12 | |
| Humidifier | Form | Electrode humidification | |||||||||
| Humidifying capacity | kg/h | 3 | 3 | 3 | 4 | 4.5 | 4.5 | 9 | 9 | 9 | |
| Air filter | Plate G4 filter | ||||||||||
| Unit size | Width | mm | 750 | 750 | 750 | 750 | 750 | 750 | 1200 | 1200 | 1200 |
| Depth | mm | 500 | 500 | 500 | 500 | 500 | 500 | 650 | 650 | 650 | |
| Height | mm | 1800 | 1800 | 1800 | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 | |
| Connecting pipe | Gas pipe | mm | 12.7 | 12.7 | 12.7 | 15.8 | 15.8 | 15.8 | 22 | 22 | 22 |
| Fluid pipe | mm | 9.52 | 9.52 | 9.52 | 12.7 | 12.7 | 12.7 | 19 | 19 | 19 | |
| Drain-pipe | mm | φ20 | φ20 | φ20 | φ20 | φ20 | φ20 | φ20 | φ20 | φ20 | |
| Humidifier water inlet pipe | in | φ20 | φ20 | φ20 | φ20 | φ20 | φ20 | φ20 | φ20 | φ20 | |
| Weight | Indoor unit (air-cooled) | kg | 130 | 135 | 140 | 145 | 150 | 180 | 245 | 295 | 330 |
| Indoor unit (water-cooled) | kg | 110 | 115 | 120 | 125 | 130 | 150 | 220 | 260 | 300 | |
| Distribution parameters | Power specifications | 220V/380V 50HZ | |||||||||
| Recommended circuit breaker | D | D32 | D32 | D32 | D32 | D32 | D63 | D63 | D63 | D63 | |
| Wiring specification | mm² | 3*4 | 3*4 | 5*4 | 5*6 | 5*6 | 5*6 | 310+24 | 310+24 | 310+24 | |
| Outdoor unit | Model | S04W | S05W | S07W | S10W | S12W | S17W | S20W | S23W | S29W | |
| Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| Weight | kg | 30 | 35 | 40 | 50 | 50 | 60 | 80 | 100 | 120 | |
| Wiring specification | mm² | 3*1.5 | 3*1.5 | 3*1.5 | 3*1.5 | 3*1.5 | 3*2.5 | 3*2.5 | 3*2.5 | 3*2.5 | |
| Width | mm | 800 | 800 | 960 | 850 | 850 | 850 | 850 | 850 | 850 | |
| Depth | mm | 290 | 290 | 380 | 490 | 490 | 455 | 550 | 550 | 550 | |
| Height | mm | 600 | 600 | 800 | 800 | 800 | 1600 | 1600 | 1600 | 1600 | |
