| Brand Name: | Hailos |
| Model Number: | S75 |
| MOQ: | 1 |
| Price: | $3000~$8000 |
| Delivery Time: | 5-8 weeks |
| Payment Terms: | T/T |
Applications
| No. | Description | Inverter frequency PAC | |||||

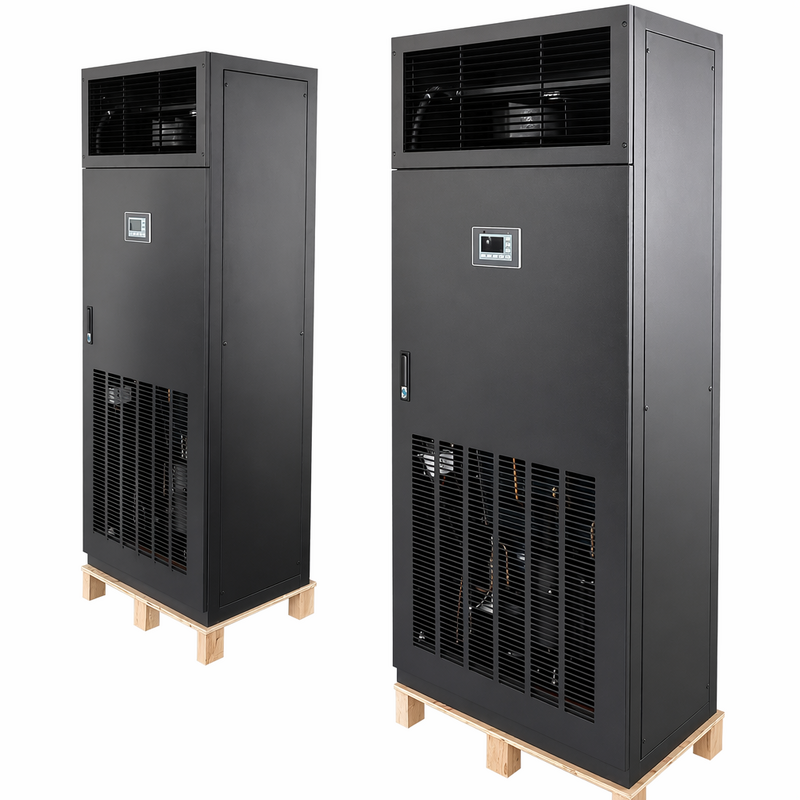

| 1 | Model | S75 | |||||
| 2 | Unit performance | Air volume (m³/h) | 15470 | ||||
| 3 | Cooling capacity (kW) | 75 | |||||
| 4 | Number of compressors (units) | 2 | |||||
| 5 | Operating mode | Constant temperature and humidity type | |||||
| 6 | Compressor type | Inverter frequency scroll compressor | |||||
| 7 | External static pressure (Pa) | 30~300 | |||||
| 8 | Power supply (V) | 380/50HZ | |||||
| 9 | refrigerant | R410A | |||||
| 10 | Expansion valve | Electronic expansion valve | |||||
| 11 | Electric heating type | PTC | |||||
| 12 | Electric heating power (kW) | 24 | |||||
| 13 | Humidifier type | wet film | |||||
| 14 | Humidification rate (kg/h) | 13 | |||||
| 15 | Temperature control range (°C) | 17-30 | |||||
| 16 | Humidity control range (RH%) | 45-70 | |||||
| 17 | Temperature control accuracy (°C) | ±2 | |||||
| 18 | Humidity control accuracy (RH%) | ±5 | |||||
| 19 | Indoor unit | Evaporator type | Copper tube with aluminum fins | ||||
| 20 | air filter | G4 Level Initial Effect | |||||
| 21 | Indoor fan type | EC | |||||
| 22 | External dimensions (mm) | W | 1750 | ||||
| 23 | D | 950 | |||||
| 24 | H | 1950 | |||||
| 25 | Unit weight (Kg) | 620 | |||||
| 26 | outdoor unit | Condenser type | Copper tube sleeve aluminum fin | ||||
| 27 | Number of outdoor units (units) | 2 | |||||
| 28 | Outdoor unit weight (Kg) | 95 | |||||
| 29 | External dimensions (mm) | W | 850 | ||||
| 30 | D | 455 | |||||
| 31 | H | 1600 | |||||
| 32 | other | Indoor unit air supply method | underfloor air supply | ||||
| 33 | Tracheal tube dimensions (φmm) | 22 | |||||
| 34 | Liquid tube dimensions (φmm) | 19 | |||||
| 35 | Condensate drain pipe (φmm) | 25 | |||||
| 36 | Humidifier water inlet pipe (φmm) | 20 | |||||
| 37 | It is recommended to use the main cable. | 16²*3+6²*2 | |||||
| 38 | Cables are used to connect indoor and outdoor units. | 3*2.5² | |||||
| 39 | Remote control system interface | RS485 | |||||
| 40 | It has a power failure memory function | Automatic power-on after power failure and reset | |||||
