| Brand Name: | Hailos |
| Model Number: | HLS-3A-LT |
| MOQ: | 1 |
| Price: | $5000~$20000 |
| Delivery Time: | 5-8 weeks |
| Payment Terms: | T/T |

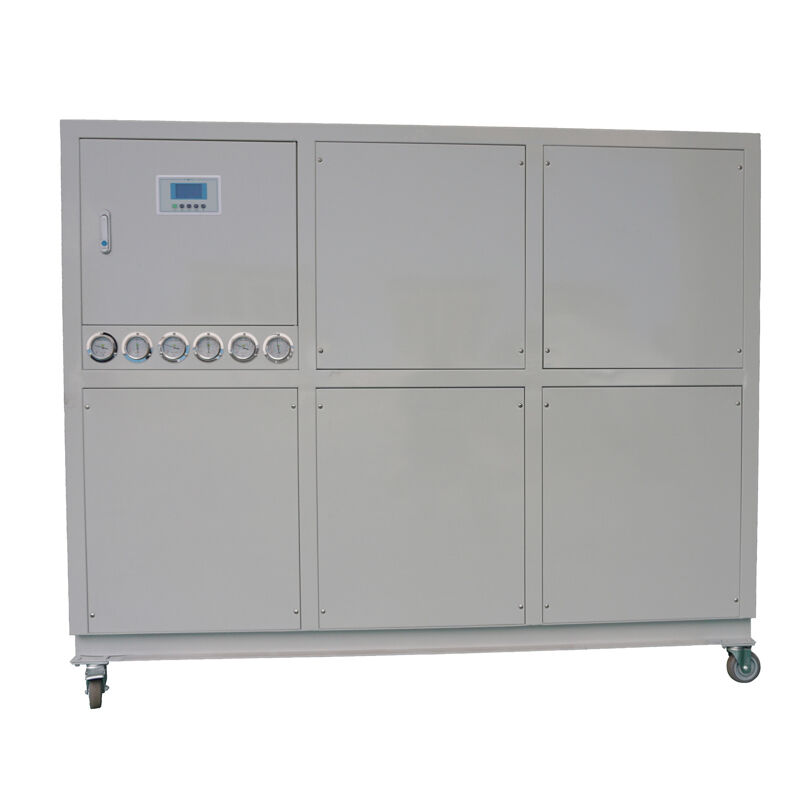

Low Temperature Water Chiller Closed Loop Glycol Circulation For Chemical Reaction Cooling
Achieve precise exothermic control and ensure process safety with our Low Temperature Water Chiller. Specifically engineered for Chemical Reaction Cooling, this unit utilizes a closed-loop propylene glycol (PG) or ethylene glycol (EG) circulation system to deliver stable, sub-zero cooling as low as -40°C. Unlike standard water chillers, our system prevents freezing in jackets and coils, while maintaining a sealed, contaminant-free environment. It is the definitive solution petrochemicals, specialty chemicals, and laboratory synthesis where thermal runaway prevention and batch consistency are paramount.
| Model/Watertemperature | HLS-3A-LT | HLS-4A-LT | HLS-5A-LT | HLS-8A-LT | HLS-10A-LT | HLS-15A-LT | HLS-20A-LT | HLS-25A-LT | HLS-30A-LT | HLS-40A-LT | |
| Cooling capacity (KW) (low temperature unit) |
0 | 6.1 | 8.3 | 10.6 | 17 | 20.8 | 27.3 | 43.2 | 52.5 | 64.8 | 86 |
| -5 | 5.05 | 8.95 | 8.55 | 13.9 | 17.2 | 22.1 | 36.3 | 40.6 | 54.5 | 70.2 | |
| -10 | 4.25 | 5.7 | 7.2 | 11.4 | 14.25 | 17.6 | 28.6 | 31.8 | 43.2 | 57.9 | |
| -15 | 3.5 | 4.65 | 5.9 | 9.2 | 10.8 | 14.3 | 22.2 | 24.4 | 34.3 | 45.2 | |
| Cooling capacity (KW) (ultra-low temperatu re unit)) |
-20 | 4.64 | 5.89 | 7.03 | 8.39 | 10.28 | 16.7 | 19.88 | 24.9 | 29.3 | 32.8 |
| -25 | 3.59 | 4.54 | 5.52 | 6.43 | 7.76 | 12.74 | 15.32 | 19.02 | 22.6 | 25.2 | |
| -30 | 2.71 | 3.42 | 4.09 | 4.8 | 5.68 | 9.41 | 11.47 | 14.09 | 16.91 | 18.83 | |
| -35 | 1.99 | 2.5 | 2.99 | 3.47 | 3.99 | 6.62 | 8.26 | 10 | 12.18 | 13.46 | |
| -40 | 1.41 | 1.76 | 2.1 | 2.39 | 2.62 | 4.33 | 5.62 | 6.65 | 8.27 | 8.99 | |
| Power | Volt | 3P-380/415V-50/60HZ | |||||||||
| Refrigerant | Type | R22/R404a/R407c | |||||||||
| Control Method |
External equalizer thermal expansion valve | ||||||||||
| Compressor | Type | Scroll or Piston | |||||||||
| Power | 2.25 | 3 | 3.75 | 5 | 7.5 | 11 | 15 | 18.75 | 22.5 | 30.1 | |
| CoolingAir Volume |
m3/h | 3400 | 4500 | 5600 | 8800 | 11000 | 16000 | 21000 | 26000 | 32000 | 43000 |
| Inlet Outlet PipeDiameter | 3/4- | 3/4" | 1" | 1-1/2" | 1-1/2" | 2" | 2" | 2-1/2" | 2-1/2" | 3" | |
| ChilledWaterFlow | 1.5 | 2 | 2.5 | 5 | 5 | 7.5 | 10 | 12.5 | 15 | 21.2 | |
| Dimensions | Length(L) | 1070 | 1070 | 1165 | 1540 | 1540 | 1780 | 2030 | 2580 | 2580 | 2030 |
| Width(W) | 600 | 600 | 680 | 780 | 780 | 830 | 910 | 910 | 910 | 1800 | |
| Height(H) | 1370 | 1370 | 1540 | 1690 | 1690 | 1750 | 1925 | 2020 | 2020 | 2000 | |
| weight (Kg) | 170 | 250 | 270 | 370 | 520 | 790 | 880 | 1100 | 1280 | 1420 | |
Project Case
A3: Yes, warm welcome customers to visit our workshop and test equipment on site. We support live video factory tour if you cannot come to China temporarily.
