| Brand Name: | Hailos |
| MOQ: | 1 |
| Price: | $3000~$9000 |
| Delivery Time: | 5-8 weeks |
| Payment Terms: | T/T |

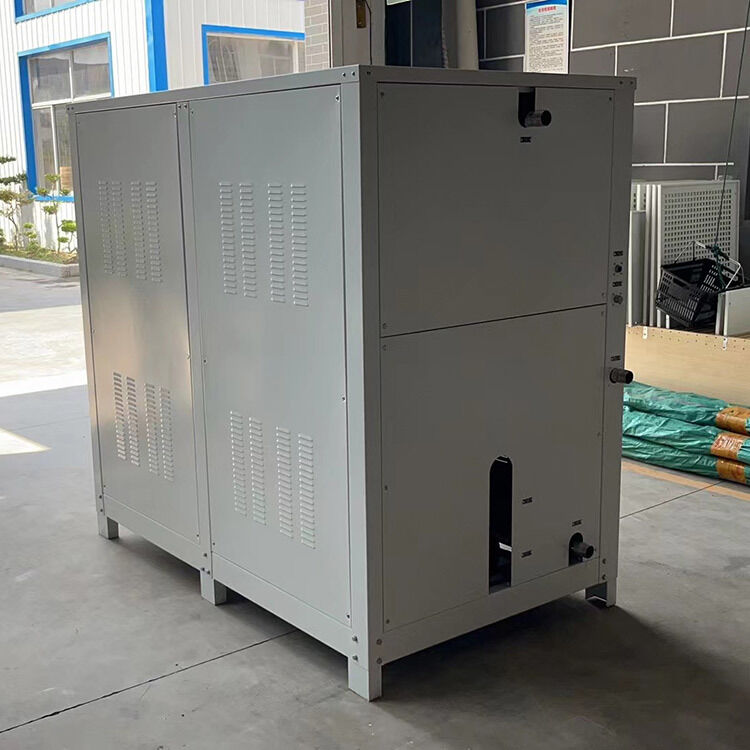

Closed Loop Water Cooled Chiller Accurate Temperature Regulation For Electronic Manufacturing Workshop
In the high-stakes environment of electronics manufacturing, precision is everything. Our Closed Loop Water Cooled Chiller is engineered to deliver ultra-stable, contaminant-free cooling essential for Surface Mount Technology (SMT), semiconductor fabrication, and PCB assembly lines. By maintaining accurate temperature regulation within ±0.5°C, this chiller ensures consistent solder joint quality, prevents thermal stress on sensitive components, and stabilizes laser marking systems. Its sealed, pressurized water circuit eliminates oxidation and biological growth, guaranteeing pure coolant delivery to your critical production equipment.
| Parameter | Model | HLS-20W | HLS-25W | HLS-30W | HLS-36W | HLS-40W | HLS-45W | HLS-50W | HLS-60W |
| Cooling capacity | KW 50HZ/60HZ |
67.14 78.56 |
81.53 95.39 |
99.91 116.05 |
118.8 140.5 |
129.06 151.00 |
148.5 175.2 |
165195 | 196230 |
Running current |
A | 42.1 | 48.5 | 58.3 | 64 | 75.4 | 82.3 | 90.5 | 110 |
| Power Supply | Volt | 3P-380/415V-50/60HZ | |||||||
| Refrigerant | Name | R22 | |||||||
| Fill (kg) |
2.8*4 | 6.3*2 | 5.6*3 | 7.2*3 | 5.6*4 | 9*3 | 7.5*4 | 7.2*5 | |
| Control Method | Thermal expansion valve | ||||||||
| Compressor | Type | Hermetic scroll | |||||||
| Power (KW) |
3.75*4 | 9.4*2 | 7.5*3 | 9*3 | 7.5*4 | 11.25*3 | 9.37*4 | 9*5 | |
| Cooling water |
water flow m³/h |
14.44 | 17.54 | 21.32 | 24.12 | 27.74 | 30.15 | 33.5 | 40.2 |
| Pipe diameter | 2" | 2-1/2" | 2-1/2" | 2-1/2" | 3" | 3" | 3" | 3" | |
| Chilled Water | water flow m³/h |
11.55 | 14.03 | 17.06 | 19.5 | 22.19 | 24.75 | 27.5 | 33 |
| water tank (L) |
80 | 80 | 100 | 200 | 200 | 250 | 400 | 500 | |
| Pipe diameter | 2" | 2-1/2" | 2-1/2" | 2-1/2" | 3" | 3" | 3" | 3" | |
| Waterpump | Power (KW) |
2.2 | 2.2 | 3 | 3.75 | 3.75 | 3.75 | 3.75 | 3.75 |
| Pressure(Mpa) | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | |
| Dimension | Length (mm) |
2080 | 2080 | 2080 | 2180 | 2180 | 2180 | 2080 | 2180 |
| Width (mm) |
800 | 830 | 8300 | 8800 | 880 | 880 | 1550 | 1550 | |
| Height (mm) |
1460 | 1460 | 1500 | 1500 | 1500 | 1600 | 1460 | 1460 | |
| Weight | kg |
440 |
620 |
690 |
740 |
850 |
1100 |
1450 |
1880 |
