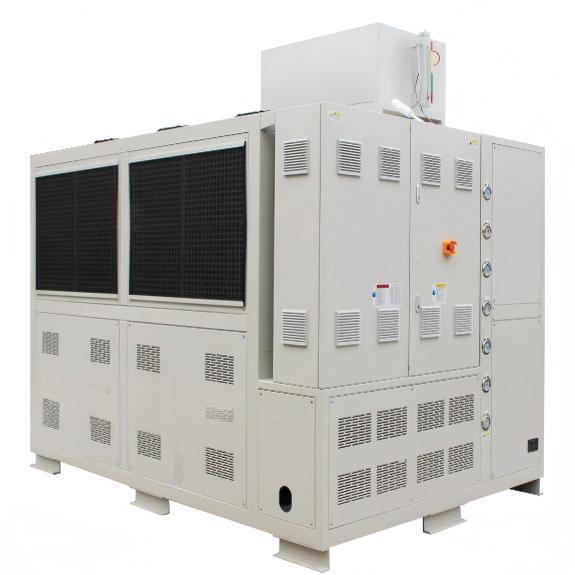

Low Vibration Water Cooled Chiller Closed Loop Water Circulation For Data Center Auxiliary Cooling
Protect the uptime and integrity of your critical IT infrastructure with our Low Vibration Water Cooled Chiller. Engineered specifically for Data Center Auxiliary Cooling, this unit provides a highly reliable, closed-loop source of chilled water for server rooms, network closets, and supplemental cooling zones. Unlike standard industrial chillers, this model prioritizes minimal vibration and absolute fluid purity. Its sealed, closed-loop design prevents contamination, while advanced compressor isolation ensures whisper-quiet, low-impact operation—making it the ideal partner for precision cooling systems (CRAC/CRAH units) and sensitive electronic environments.
| Parameter | Model | HLS-20W | HLS-25W | HLS-30W | HLS-36W | HLS-40W | HLS-45W | HLS-50W | HLS-60W |
| Cooling capacity | KW 50HZ/60HZ |
67.14 78.56 |
81.53 95.39 |
99.91 116.05 |
118.8 140.5 |
129.06 151.00 |
148.5 175.2 |
165195 | 196230 |
Running current |
A | 42.1 | 48.5 | 58.3 | 64 | 75.4 | 82.3 | 90.5 | 110 |
| Power Supply | Volt | 3P-380/415V-50/60HZ | |||||||
| Refrigerant | Name | R22 | |||||||
| Fill (kg) |
2.8*4 | 6.3*2 | 5.6*3 | 7.2*3 | 5.6*4 | 9*3 | 7.5*4 | 7.2*5 | |
| Control Method | Thermal expansion valve | ||||||||
| Compressor | Type | Hermetic scroll | |||||||
| Power (KW) |
3.75*4 | 9.4*2 | 7.5*3 | 9*3 | 7.5*4 | 11.25*3 | 9.37*4 | 9*5 | |
| Cooling water |
water flow m³/h |
14.44 | 17.54 | 21.32 | 24.12 | 27.74 | 30.15 | 33.5 | 40.2 |
| Pipe diameter | 2" | 2-1/2" | 2-1/2" | 2-1/2" | 3" | 3" | 3" | 3" | |
| Chilled Water | water flow m³/h |
11.55 | 14.03 | 17.06 | 19.5 | 22.19 | 24.75 | 27.5 | 33 |
| water tank (L) |
80 | 80 | 100 | 200 | 200 | 250 | 400 | 500 | |
| Pipe diameter | 2" | 2-1/2" | 2-1/2" | 2-1/2" | 3" | 3" | 3" | 3" | |
| Waterpump | Power (KW) |
2.2 | 2.2 | 3 | 3.75 | 3.75 | 3.75 | 3.75 | 3.75 |
| Pressure(Mpa) | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | |
| Dimension | Length (mm) |
2080 | 2080 | 2080 | 2180 | 2180 | 2180 | 2080 | 2180 |
| Width (mm) |
800 | 830 | 8300 | 8800 | 880 | 880 | 1550 | 1550 | |
| Height (mm) |
1460 | 1460 | 1500 | 1500 | 1500 | 1600 | 1460 | 1460 | |
| Weight | kg |
440 |
620 |
690 |
740 |
850 |
1100 |
1450 |
1880 |
