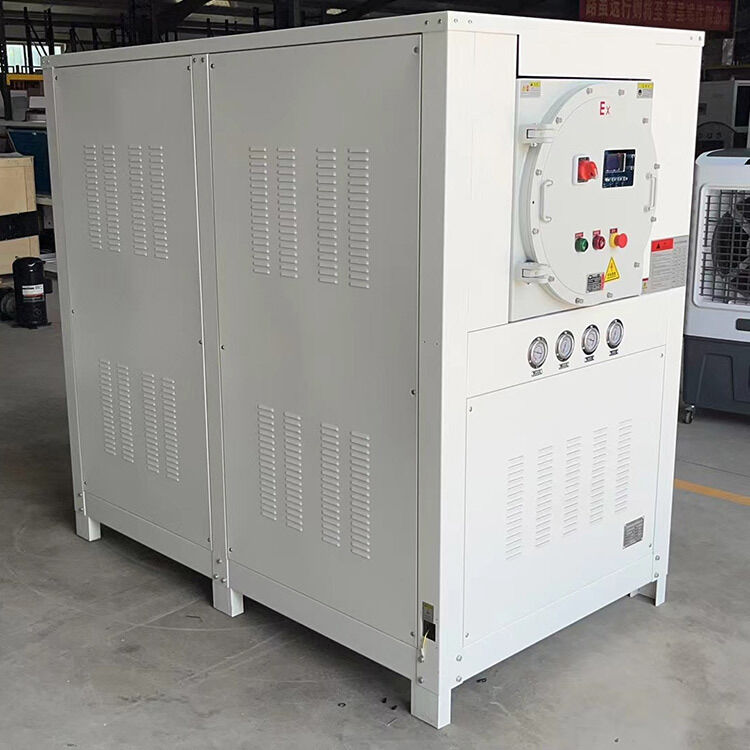

High Efficiency Water Cooled Chiller With Precise Constant Temperature Control For Industrial Process Cooling
Our water-cooled industrial chiller is fitted with enhanced finned shell & tube condensers, delivering ultra-high heat exchange efficiency and sustained steady performance under round-the-clock heavy loads. Built-in self-adaptive PID microprocessor control locks chilled water temperature within ±0.5℃, fully satisfying stringent temperature requirements of precision manufacturing processes. Outfitted with wear-resistant branded compressors and streamlined compact layout, the unit cuts footprint while extending service lifespan significantly. It covers core sectors including injection molding, electroplating, chemical synthesis, pharmaceutical production and precision machining. Optional Modbus RTU/TCP communication enables seamless remote monitoring, multi-unit linkage and factory centralized intelligent management.
| Parameter | Model | HLS-20W | HLS-25W | HLS-30W | HLS-36W | HLS-40W | HLS-45W | HLS-50W | HLS-60W |
| Cooling capacity | KW 50HZ/60HZ |
67.14 78.56 |
81.53 95.39 |
99.91 116.05 |
118.8 140.5 |
129.06 151.00 |
148.5 175.2 |
165195 | 196230 |
Running current |
A | 42.1 | 48.5 | 58.3 | 64 | 75.4 | 82.3 | 90.5 | 110 |
| Power Supply | Volt | 3P-380/415V-50/60HZ | |||||||
| Refrigerant | Name | R22 | |||||||
| Fill (kg) |
2.8*4 | 6.3*2 | 5.6*3 | 7.2*3 | 5.6*4 | 9*3 | 7.5*4 | 7.2*5 | |
| Control Method | Thermal expansion valve | ||||||||
| Compressor | Type | Hermetic scroll | |||||||
| Power (KW) |
3.75*4 | 9.4*2 | 7.5*3 | 9*3 | 7.5*4 | 11.25*3 | 9.37*4 | 9*5 | |
| Cooling water |
water flow m³/h |
14.44 | 17.54 | 21.32 | 24.12 | 27.74 | 30.15 | 33.5 | 40.2 |
| Pipe diameter | 2" | 2-1/2" | 2-1/2" | 2-1/2" | 3" | 3" | 3" | 3" | |
| Chilled Water | water flow m³/h |
11.55 | 14.03 | 17.06 | 19.5 | 22.19 | 24.75 | 27.5 | 33 |
| water tank (L) |
80 | 80 | 100 | 200 | 200 | 250 | 400 | 500 | |
| Pipe diameter | 2" | 2-1/2" | 2-1/2" | 2-1/2" | 3" | 3" | 3" | 3" | |
| Waterpump | Power (KW) |
2.2 | 2.2 | 3 | 3.75 | 3.75 | 3.75 | 3.75 | 3.75 |
| Pressure(Mpa) | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | |
| Dimension | Length (mm) |
2080 | 2080 | 2080 | 2180 | 2180 | 2180 | 2080 | 2180 |
| Width (mm) |
800 | 830 | 8300 | 8800 | 880 | 880 | 1550 | 1550 | |
| Height (mm) |
1460 | 1460 | 1500 | 1500 | 1500 | 1600 | 1460 | 1460 | |
| Weight | kg |
440 |
620 |
690 |
740 |
850 |
1100 |
1450 |
1880 |
