| Brand Name: | Custom made or our own brand |
| Model Number: | 1.5P rack mount |
| MOQ: | 1 |
| Price: | $400 |
| Delivery Time: | 5-8 weeks |
| Payment Terms: | T/T |
Product Introduction16.9kW precision air conditioner with precise temperature & humidity control, 24/7 continuous operation

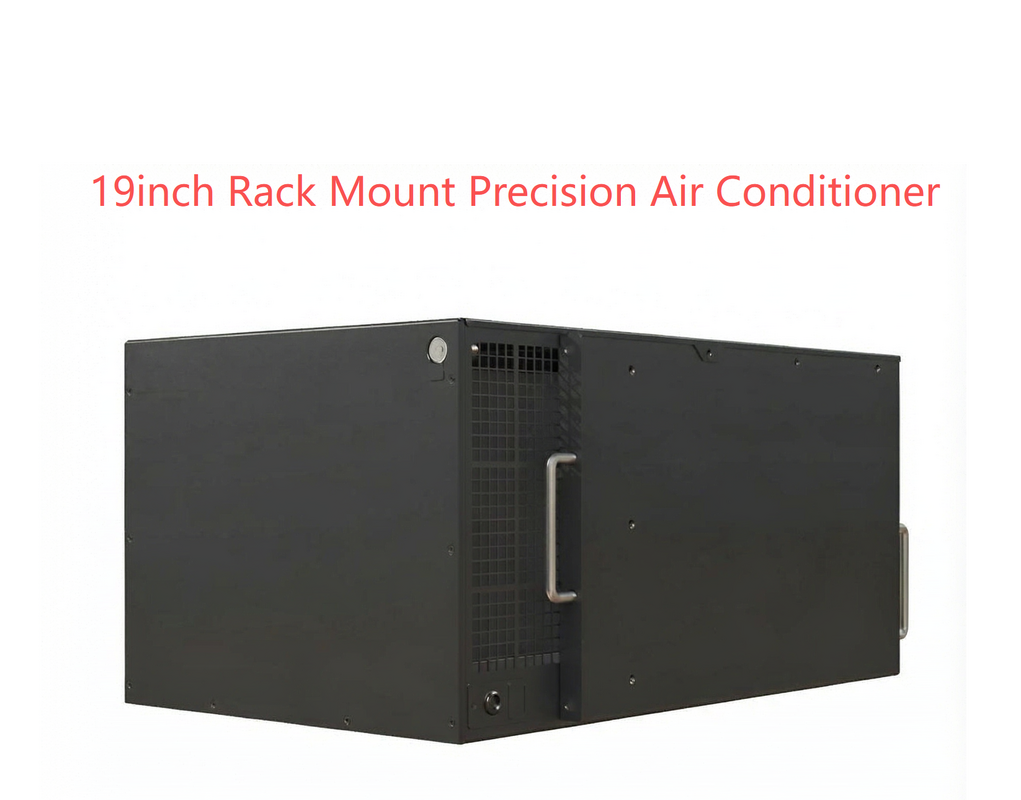

This Rack mount Series precision cooling unit 3.5 kW (1.5 HP) to 12.5 kW (5 HP), this series ensures precise temperature and humidity control, making it an ideal solution for data centers, server rooms, and liquid cooling system support.
Key Features:
|
Specification |
DCAI-40I |
DCAI-50I |
DCAI-80I |
DCAI-130I |
|---|---|---|---|---|
|
Rated Voltage / Frequency |
208-240V, 1Ph, 50/60Hz (Across all models) |
208-240V, 1Ph, 50/60Hz |
208-240V, 1Ph, 50/60Hz |
208-240V, 1Ph, 50/60Hz |
|
Cooling Capacity (kW) |
3.5 (1.5 HP) |
5 (2 HP) |
7.5 (3 HP) |
12.5 (5 HP) |
|
Max. Operating Current (A) |
11.5 |
16.5 |
20 |
35 |
|
Standard Airflow (m³/h) |
800 |
1100 |
1650 |
2200 |
|
Fan Type |
Backward-curved EC Centrifugal Fan (Across all models) |
Backward-curved EC Centrifugal Fan |
Backward-curved EC Centrifugal Fan |
Backward-curved EC Centrifugal Fan |
|
Heater Power (kW) |
2 |
2 |
3 |
4 |
|
Humidification (kg/h) |
1 |
1 |
1.5 |
3 |
|
Indoor Unit (W x D x H) (mm) |
443 x 715 x 218 |
443 x 715 x 218 |
443 x 715 x 351 |
443 x 715 x 440 |
|
Net Weight (kg) |
27 |
28 |
36 |
42 |
|
Outdoor Unit Model |
DHA-50L |
DHA-70L |
DHA-100L |
DHA-160L |
|
Outdoor Unit (W x D x H) (mm) |
793 x 310 x 537 |
793 x 310 x 537 |
1027 x 405 x 733 |
1019 x 405 x 1343 |
Project Case
A3: Yes, warm welcome customers to visit our workshop and test equipment on site. We support live video factory tour if you cannot come to China temporarily.
video
