86KW Cooling Capacity Constant Humidity and Temperature Precision Air Conditioner Precision AC Unit

Name: 86KW Cooling Capacity Constant Humidity and Temperature Precision Air Conditioner Precision AC Unit
Brand: Zhengzhou Hailos Refrigeration Equipment Co.,ltd
SKU: S83
Price: 15000 USD
Availability: InStock

Brand Name:	Hailos
Model Number:	S83
MOQ:	1
Price:	$15000
Delivery Time:	5-8 weeks
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO、CE

Document:

Hailos catalogue of precisi...r .pdf

Model:

S83

Cooling Capacity:

86.3KW

Sensible Cooling Capacity:

79.5KW

Compressor Qty:

Fan Type:

Fan Airflow:

21520

Heat Capacity:

30KW

Humidifying Capacity:

13KG

Connection Piping:

25*2

Fluid Pipe:

19*2

Drain-pipe:

φ2

Indoor Dimension:

1750*850*1900mm

Indoor Unit Weight:

360kg

Outdoor Unit:

850*550*1600

Outdoor Weight:

80kg

Packaging Details:

wooden cartons

Supply Ability:

200 sets /month

Highlight:

86KW Cooling Capacity Precision AC Unit

Constant Humidity Temperature Precision Air Conditioner

86KW Precision Air Conditioning Unit

Product Description

Product Introduction

86kW high-capacity precision air conditioner is engineered with N+1 redundant parallel operation. If any single unit is taken offline for servicing, the remaining systems can continue carrying the complete cooling demand, preventing excessive temperature rise in the equipment room. With a high sensible heat ratio, the unit is specifically suited to the concentrated thermal loads generated by core backbone communication equipment and supports continuous 24/7 operation.

Energy Efficiency

High airflow combined with a low temperature difference design improves cooling efficiency while reducing power consumption.
Equipped with a high-efficiency flexible scroll compressor.
Uses a large-surface-area copper-tube and aluminum-fin evaporator for enhanced heat exchange.
Optimized internal structure reduces airflow resistance, operating power, and noise levels.

High Reliability

Designed for continuous operation 24 hours a day, 365 days a year, with a service life of up to 10 years.
All components and accessories are subject to rigorous inspection and performance testing to ensure dependable operation.
Incorporates a PTC electric heater for enhanced safety and operational stability.
Comprehensive protection mechanisms help maintain dependable unit performance under different operating conditions.

Space-Saving Design

Modular construction allows flexible system configuration and installation.
Supports multiple return-air arrangements to accommodate different room layouts and application requirements.
Streamlined and compact cabinet design minimizes equipment footprint.
Front-access maintenance enables servicing from the front and reduces the required maintenance clearance.

Intelligent Control

Large Chinese/English LCD display provides clear visibility of unit operating conditions, component status, room temperature, and humidity.
Dedicated constant-temperature and humidity controller uses advanced PID regulation technology.
Integrated alarm, protection, and master-level diagnostic functions simplify operation and troubleshooting.
RS485 communication interface supports remote supervision and centralized online group control.

Typical Applications

Small and Medium-Sized Server Rooms and Data Centers
UPS and Battery Energy Storage Rooms
Telecommunications Base Stations and 5G Infrastructure Hubs
MRI and CT Medical Imaging Rooms
Industrial Automation and PLC Control Rooms

Technical Parameters

Category	Parameter	Unit	S04	S05	S07	S10	S12	S17	S20	S23	S29
Cooling	Total Capacity	kW	4.4	5.5	8.1	10.4	12.8	16.9	20.1	25.6	31.3
Cooling	Sensible Capacity	kW	4.3	5.2	7.6	10	12.5	16.1	19	23.1	30.3
Fan	Air Flow	m3/h	1350	1550	2300	2800	3000	5250	5800	6150	10040
Heater	Capacity	kW	3	3	3	4	6	6	10	12	12
Humidifier	Capacity	kg/h	3	3	3	4	4.5	4.5	9	9	9
Unit Size	Width	mm	750	750	750	750	750	750	1200	1200	1200
	Depth	mm	500	500	500	500	500	500	650	650	650
	Height	mm	1800	1800	1800	1900	1900	1900	1900	1900	1900
Outdoor	Model	-	S04W	S05W	S07W	S10W	S12W	S17W	S20W	S23W	S29W
	Weight	kg	30	35	40	50	50	60	80	100	120

Category	Parameter	Unit	S35	S41	S47	S58	S66	S83	S99
Cooling Capacity	Total Capacity	kW	37	45.8	53.7	60.1	70.3	86.3	104.6
Cooling Capacity	Sensible Capacity	kW	35.1	43.4	49	58.3	68.9	79.5	95.2
Compressor	Type		Vortex	Vortex	Vortex	Vortex	Vortex	Vortex	Vortex
Compressor	Quantity		2	2	2	2	2	2	2
Fan	Type		AC/EC Centrifugal	AC/EC Centrifugal	AC/EC Centrifugal	AC/EC Centrifugal	AC/EC Centrifugal	AC/EC Centrifugal	AC/EC Centrifugal
	Air Flow	m3/h	11140	12470	13550	14580	15470	21520	24000
	Quantity		2	2	2	2	2	2	2
Optional Accessories	Heating Capacity	kW	18	18	18	24	24	30	30
Optional Accessories	Humidifying Capacity	kg/h	9	13	13	13	13	13	13
Unit Size	Width	mm	1200	1200	1750	1750	1750	1750	2000
	Depth	mm	650	650	850	850	850	850	1000
	Height	mm	1900	1900	1900	1900	1900	1900	1900
Connecting Pipe	Gas Pipe	mm	22*2	22*2	22*2	22*2	22*2	25*2	28*2
	Fluid Pipe	mm	19*2	19*2	19*2	19*2	19*2	19*2	22*2
	Drain Pipe	mm	φ25	φ25	φ25	φ25	φ25	φ25	φ32
	Water Inlet Pipe	in	φ20	φ20	φ20	φ20	φ20	φ20	φ20
Weight	Total Weight	kg	320	360	460	560	620	900	1000
Distribution	Power Supply		380V / 50Hz	380V / 50Hz	380V / 50Hz	380V / 50Hz	380V / 50Hz	380V / 50Hz	380V / 50Hz
	Circuit Breaker	D	D100	D100	D100	D100	D120	D125	D200
	Wiring	mm2	16	16	16	25	25	25	35
Outdoor Unit	Model		S31W	S41W	S47W	S58W	S66W	S83W	S99W
	Quantity		2	2	2	2	2	2	2
	Weight	kg	80	80	100	100	120	150	200
	Wiring	mm2	3*2.5/2	3*2.5/2	3*2.5/2	3*2.5/2	3*2.5/2	3*2.5/2	3*2.5/2
	Width	mm	850	850	850	850	850	850	2100
	Depth	mm	550	550	550	550	550	550	1100
	Height	mm	1600	1600	1600	1600	1600	1600	1100

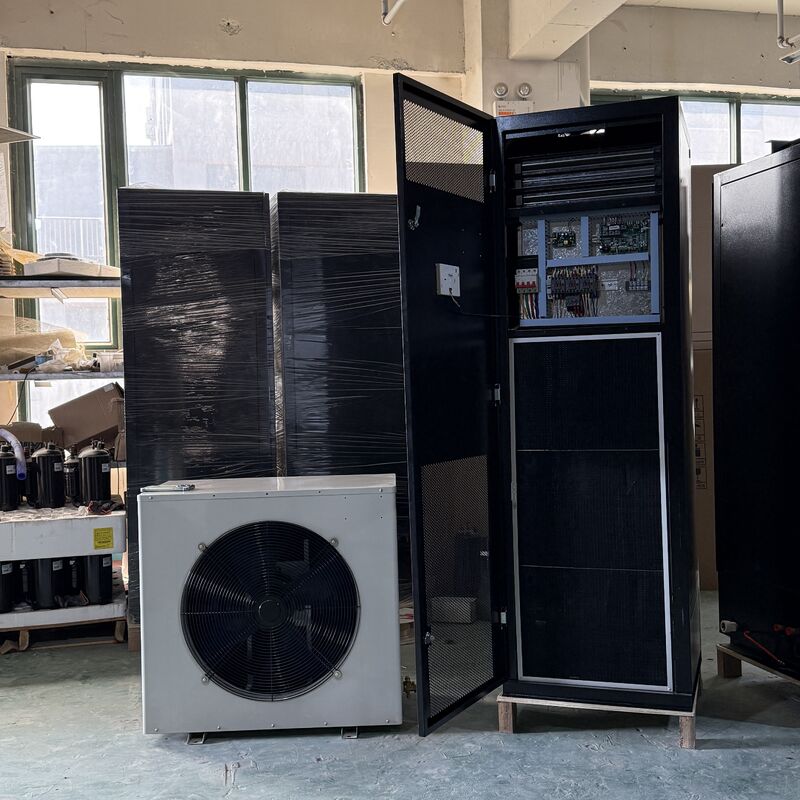

Product Photo

86KW Cooling Capacity Constant Humidity and Temperature Precision Air Conditioner Precision AC Unit

Certificate ( CE /ISO )

86KW Cooling Capacity Constant Humidity and Temperature Precision Air Conditioner Precision AC Unit

Packing

86KW Cooling Capacity Constant Humidity and Temperature Precision Air Conditioner Precision AC Unit

Project Case

86KW Cooling Capacity Constant Humidity and Temperature Precision Air Conditioner Precision AC Unit

FAQ

Q1: Who is Zhengzhou Hailos Refrigeration Equipment Co.,ltd?

A1: We are a professional factory specializing in R&D, production and export of precision air conditioners and industrial chillers, located in Zhengzhou, China. We focus on high-precision cooling equipment for data centers, laboratories, laser processing, electroplating, battery factories, medical rooms and industrial production lines. All units are strictly tested before delivery, with complete international certifications for global market sales.

Q2: What is your MOQ (Minimum Order Quantity)?

A2: 1 unit for standard models is acceptable; for customized non-standard machines, MOQ depends on configuration. Distributors with bulk orders get extra factory discount.

Q3: Do you accept factory inspection?

A3: Yes, warm welcome customers to visit our workshop and test equipment on site. We support live video factory tour if you cannot come to China temporarily.

Q4: Where are Hailos precision air conditioners widely used?

A4: Server data room, communication base station, medical lab, testing laboratory, battery workshop, optical equipment room, clean room, electronic manufacturing workshop, industrial control cabinet cooling.

Q5: Can precision air conditioner work all year round without shutdown?

A5: Yes. Our precision cooling units adopt heavy-duty scroll compressor, EC energy-saving fan and independent control system, designed for 24-hour non-stop operation all year long, low failure rate.

Q6: Can I adjust temperature and humidity remotely?

A6: Standard models support Modbus communication to connect with monitoring system; optional WiFi remote control module for mobile phone real-time parameter checking, alarm reminder and parameter modification.

Q7: What refrigerants do you use for precision AC?

A7: Mainly eco-friendly R410A, R134a; we can replace with R32, R290 low-GWP refrigerants to meet local environmental regulations in your country.

Q8: Do you support OEM / ODM customized service?

A8: Yes, full OEM & ODM service available: custom unit size, voltage (380V/220V/415V 50/60Hz), brand logo, control panel language (English, Spanish, Russian, Vietnamese), special refrigerant, remote monitoring system, cabinet color. We can design new model drawing based on your working conditions.
