Modular Packaged Rooftop Air Conditioning Unit with Customizable Air Treatment Sections
Product Introduction
The packaged rooftop air conditioning unit consists of multiple independent air treatment functional sections, including fresh & return air mixing section, primary filter, surface cooling & dehumidification section, heating section, humidification section, secondary return air mixing section, fan section, flow equalization section, medium-efficiency filter, sub-high-efficiency filter, sterilization section and air supply section. Customers can freely select and combine any functional sections according to project demands. The unit realizes one or multiple air conditioning processes to precisely match diverse site working conditions.
A Packaged Rooftop Unit (RTU) integrates cooling, heating, filtration, humidification, and air distribution into a single factory-assembled unit installed on the roof or at ground level outdoors. Compared to split systems, RTUs offer simpler installation, centralized maintenance, no indoor mechanical room footprint, and flexible functional configuration. They are the preferred solution for medium to large single-story and low-rise buildings where indoor space is at a premium.
Applications:
Shopping malls
Technical Parameters
| Attribute | Details | Attribute | Details |
| Functions | Cooling, Heating, Purification, Constant Temperature & Humidity | Operating Environment | 5-38°C |
| Customizable | Yes | Protection Mode | Overload Protection |
| Type | Precision Air Conditioner / Air Handling Unit | Installation Method | Outdoor |
| Airflow & Pressure | 380V (Voltage) | Compressor Type | Fully Enclosed Scroll |
| Fan Type | Centrifugal | Material | Galvanized Sheet |
| Specifications | Optional / Customizable | Compressor Overcurrent Protection | PTC Thermal Protection |
| Refrigerant | R22 | Packaging | Wooden Case / Carton |
| Advantages | Sturdy and Durable | Brand | Hailos |

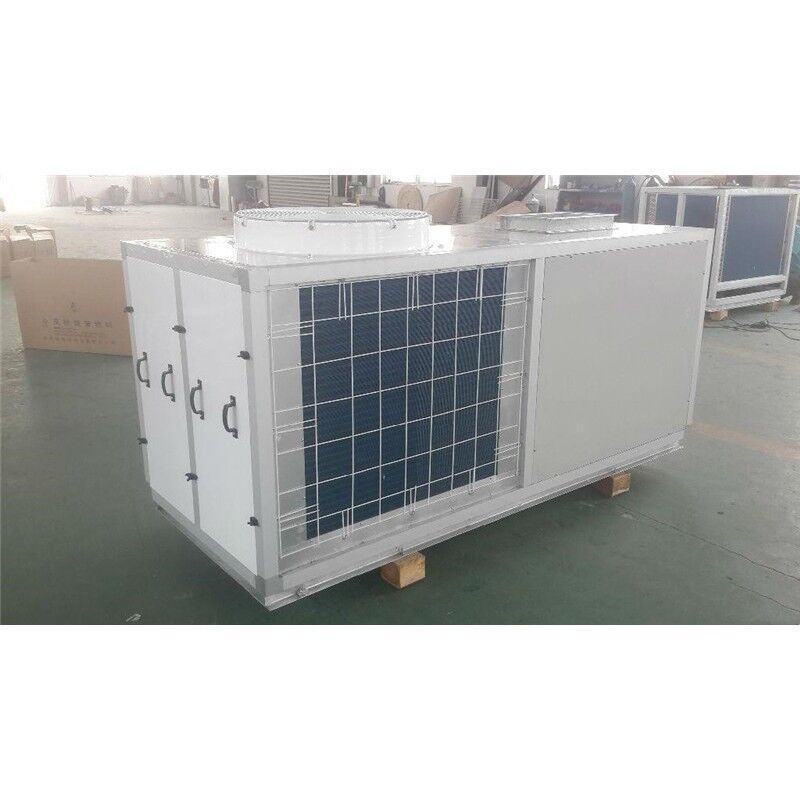

Product Photo
