| Brand Name: | Hailos |
| Model Number: | precision air conditioner |
| MOQ: | 1 |
| Price: | $3000~$8000 |
| Delivery Time: | 5-8 weeks |
| Payment Terms: | T/T |

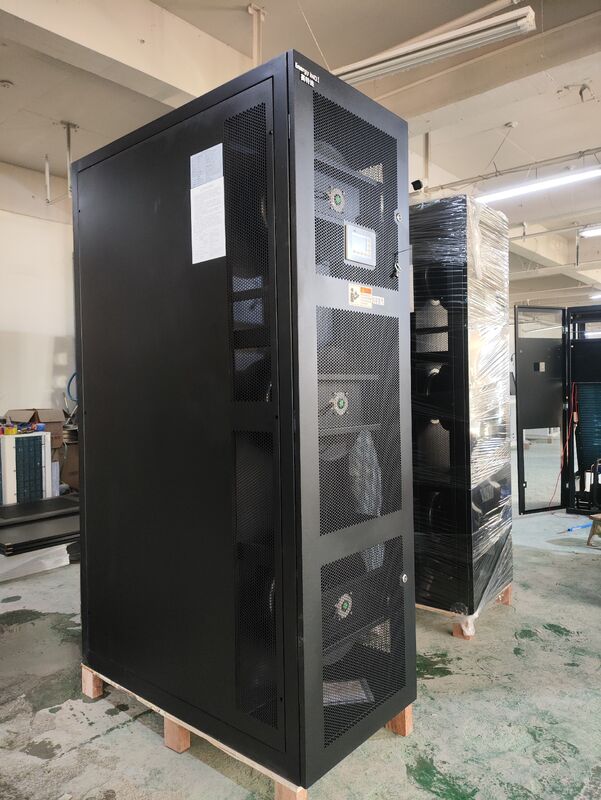

Front Air Supply In-Row Precision Air Conditioner 60kW Heating Cooling Unit for AI Server High Heat Density Rack
Address the extreme thermal challenges of Artificial Intelligence (AI) and High-Performance Computing (HPC) with our 60kW Front Air Supply In-Row Precision Air Conditioner. Designed specifically for high-density racks generating massive heat loads, this unit sits directly within the server row ("close-coupled"), capturing heat at the source before it mixes with the room air. Featuring a front-discharge design, it delivers a powerful wall of cold air directly into the cold aisle, ensuring optimal inlet temperatures for GPUs and CPUs. With integrated heating and cooling capabilities, it guarantees precise climate stability 24/7, making it the ultimate solution for modern AI data centers.
Applications
AI Training & Inference Clusters
High-Performance Computing (HPC)
Deep Learning Data Centers
Custom- Made Welcome
Support 220V/380V 60Hz customization for Peru, Chile, and Mexico markets.
| Model | LXXAW | L12 | L25 | L35 | L40 | ||
| Cooling capacity |
Capacity | KW | 12.5 | 25.2 | 38.2 | 42.5 | |
| Sensible cooling caacit |
KW | 12.5 | 25.2 | 38.2 | 42.5 | ||
| Sensibleheat | 1 | 1 | 1 | 1 | |||
| factor compressor |
Variablefrequency rotor compressor | Variablefrequencyvortex compressor | |||||
| Compressor | Fan type | EC axial / EC centrifugal | EC axial / EC centrifugal | EC centrifugal | EC centrifugal | ||
| Air flow | m3/h | 3200 | 5500 | 8200 | 10000 | ||
| ventilation patte | Rear return air Frontal air supply, can be configuredwithfield adjustabledirection winddeflector, can realizehorizontal air supplyfrom thefront,horizontal air supplyfrom the left side, horizontal air supplyfrom the right side, andhorizontal air supplyfrom the left and right sides |
||||||
| expansionvalve | Electronic | ||||||
| Refrigerant | R410a | ||||||
| selective assembly |
heating capacity | KW | 3 | 3 | 6 | 6 | |
| humidification amount |
Kg/h | 3 | 3 | 3 | 3 | ||
| Unit size | Width | mm | 300 | 300 | 600 | 600 | |
| Length | mm | 1200 | 1200 | 1200 | 1200 | ||
| Height | mm | 2000 | 2000 | 2000 | 2000 | ||
| Connection pipe |
Air pipe | mm | φ16 | φ19 | φ22 | φ22 | |
| Liquid pipe | mm | φ12 | φ16 | φ16 | φ16 | ||
| Drain pipe | mm | φ19 | φ19 | φ19 | φ19 | ||
| Humidifier waterin | let pipe | G1/2" | G1/2" | G1/2" | G1/2" | ||
| Weight | Kg | 260 | 295 | 390 | 420 | ||
| Distribution parameter W |
Power supply | 380V3Ph-50Hz | |||||
| Recommended circuit breaker |
D32 | D40 | D63 | D63 | |||
| iring specification | mm2 | 6 | 10 | 10 | 10 | ||
| Outdoor unit |
Model | SCW181 | SCW48E | SCW48E | SCW55E | ||
| Quantity | 1 | 1 | 2 | 2 | |||
| Weight | Kg | 60 | 125 | 125 | 145 | ||
| Wiring specificatio | mm2 n |
1.5 | 2.5 | 2.5 | 2.5 | ||
| Vertical mounting |
W | mm | 850 | 850 | 850 | 850 | |
| L | mm | 550 | 550 | 550 | 550 | ||
| H | mm | 800 | 1600 | 1600 | 1600 | ||
| Remark | 1. Test conditions: return air temperature 37°C, relative humidity 24%; 2. The depth dimension can be extended to 1200mm, and the height dimension can be extended to 2200mm; 3. The outdoor unit is selected according to the inlet air temperature of 35°C. For other operating environments, please contact our company; 4. When the equivalent distance of the connecting pipe exceeds 30m, please refer to the installation specification to increase the pipe diameter; 5. If the data is not listed in the data sheet, please contact our company; 6. If you have other customized needs, please contact our company. |
||||||
Project Case
