| Brand Name: | Hailos |
| Model Number: | L45 |
| MOQ: | 1 |
| Price: | $3000~$8000 |
| Delivery Time: | 5-8 weeks |
| Payment Terms: | T/T |

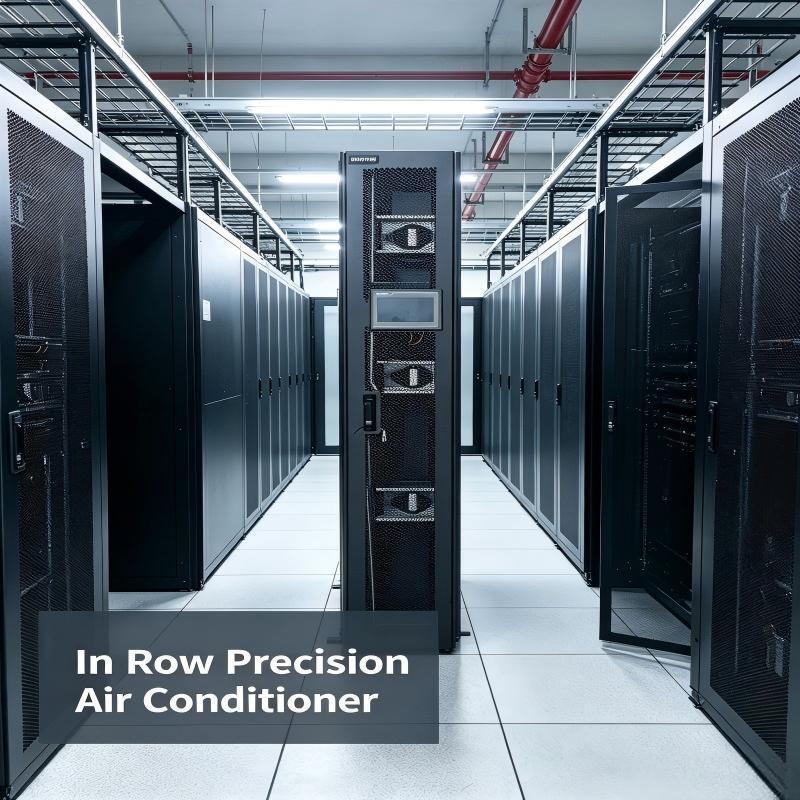

HAILOS In-Row Cooling System Ideal for Data Centers & Telecom Cabinets, 220V/380V Dual Voltage Support
Product Introduction
Applications:
| No. | Description | Inverter frequency PAC | Inverter frequency PAC | ||||||||
| 1 | Model | L35 | L45 | ||||||||
| 2 | Unit performance | Air volume (m³/h) | 8200 | 10000 | |||||||
| 3 | Cooling capacity (kW) | 38.2 | 42.5 | ||||||||
| 4 | Number of compressors (units) | 1 | 1 | ||||||||
| 5 | Operating mode | Constant temperature and humidity type | Constant temperature and humidity type | ||||||||
| 6 | Compressor type | Scroll compressor | Scroll compressor | ||||||||
| 7 | External static pressure (Pa) | 50--300 | 50--300 | ||||||||
| 8 | Power supply (V) | 230V 60HZ | 230V 60HZ | ||||||||
| 9 | Refrigerant | R410A | R410A | ||||||||
| 10 | Expansion valve | Electric expansion valve | Electric expansion valve | ||||||||
| 11 | Electric heating type | PTC | PTC | ||||||||
| 12 | Electric heating power (kW) | 6 | 6 | ||||||||
| 13 | Humidifier type | wet film | wet film | ||||||||
| 14 | Humidification rate (kg/h) | 3 | 3 | ||||||||
| 15 | Temperature control range (°C) | 16-30 | 16-30 | ||||||||
| 16 | Humidity control range (RH%) | 45-70 | 45-70 | ||||||||
| 17 | Temperature control accuracy (°C) | ±2 | ±2 | ||||||||
| 18 | Humidity control accuracy (RH%) | ±5 | ±5 | ||||||||
| 19 | Indoor unit | Evaporator type | Copper tube with aluminum fins | Copper tube with aluminum fins | |||||||
| 20 | air filter | G4 Level Initial Effect | G4 Level Initial Effect | ||||||||
| 21 | Indoor fan type | EC fan | EC fan | ||||||||
| 22 | External dimensions (mm) | W | 600 | 600 | |||||||
| 23 | D | 1200 | 1200 | ||||||||
| 24 | H | 2000 | 2000 | ||||||||
| 25 | Unit weight (Kg) | 330 | 420 | ||||||||
| 26 | outdoor unit | Condenser type | Copper tube sleeve aluminum fin | Copper tube sleeve aluminum fin | |||||||
| 27 | Number of outdoor units (units) | 1 | 1 | ||||||||
| 28 | Outdoor unit weight (Kg) | 120 | 145 | ||||||||
| 29 | External dimensions (mm) | W | 850 | 1470 | |||||||
| 30 | D | 500 | 850 | ||||||||
| 31 | H | 1600 | 1085 | ||||||||
| 32 | Other | Indoor unit air supply method | Horizontal air supply | Horizontal air supply | |||||||
| 33 | Tracheal tube dimensions (φmm) | 22 | 22 | ||||||||
| 34 | Liquid tube dimensions (φmm) | 16 | 16 | ||||||||
| 35 | Condensate drain pipe (φmm) | φ19 | φ19 | ||||||||
| 36 | Humidifier water inlet pipe (φmm) | G1/2" | G1/2" | ||||||||
| 37 | It is recommended to use the main cable. | 10²*3+6²*2 | 16²*3+6²*2 | ||||||||
| 38 | Cables are used to connect indoor and outdoor units. | 2.5²*3 | 2.5²*3 | ||||||||
| 39 | Remote control system interface | RS485 | RS485 | ||||||||
| 40 | It has a power failure memory function | Automatic power-on after power failure and reset | Automatic power-on after power failure and reset | ||||||||
Project Case
A3: Yes, warm welcome customers to visit our workshop and test equipment on site. We support live video factory tour if you cannot come to China temporarily.
