| Brand Name: | Hailos |
| Model Number: | L07 |
| MOQ: | 1 |
| Price: | $3000~$8000 |
| Delivery Time: | 5-8 weeks |
| Payment Terms: | T/T |

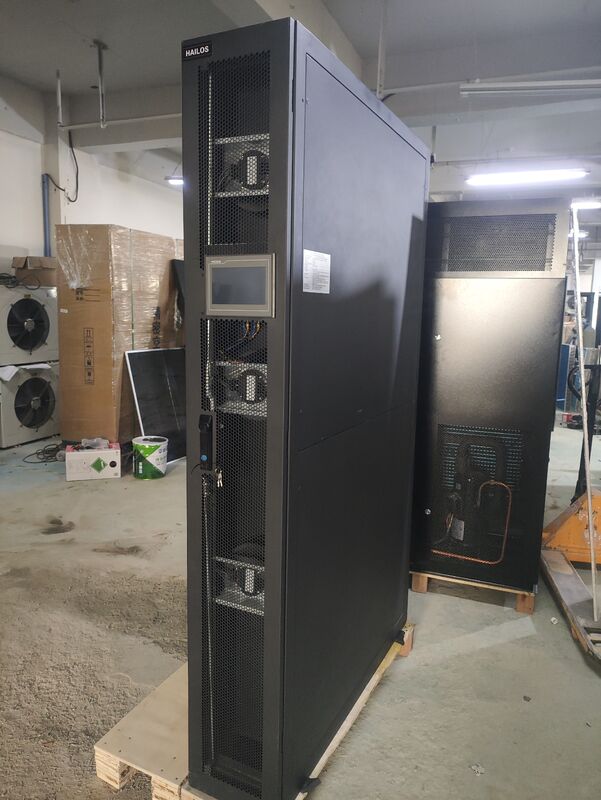

This is Hailos 8.1KW In‑Row Precision Air Conditioner,
designed for server rooms, data centers and critical equipment environments.
It provides stable constant temperature and humidity control to protect your sensitive devices 24/7.
Key Features
8.1KW high efficiency cooling (24000BTU)
Constant temperature: 17–30°C, accuracy ±2°C
Constant humidity: 45–75%RH, accuracy ±5%RH
Inverter compressor + EC fan + electronic expansion valve
Wet film humidifier 3kg/h & 4KW PTC electric heating
Single phase 230V 60Hz, perfect for Latin America
SNMP & RS485 Modbus for remote monitoring
Compact in‑row design, stable and reliable
12 months quality warranty
| No. | Description | In Row Inverter Compressor PAC | |||||||
| 1 | Model | L07 | |||||||
| 2 | Unit performance | Air volume (m³/h) | 2300 | ||||||
| 3 | Cooling capacity (kW) | 8.1KW | |||||||
| 4 | Number of compressors (units) | 1 | |||||||
| 5 | Operating mode | Constant temperature and humidity type | |||||||
| 6 | Compressor type | Inverter Rotary Compressor | |||||||
| 7 | External static pressure (Pa) | 50--300 | |||||||
| 8 | Power supply (V) | Single phase 230VAC 60HZ | |||||||
| 9 | refrigerant | R410A | |||||||
| 10 | Expansion valve | Electronic expansion valv | |||||||
| 11 | Electric heating type | PTC | |||||||
| 12 | Electric heating power (kW) | 4 KW | |||||||
| 13 | Humidifier type | wet film | |||||||
| 14 | Humidification rate (kg/h) | 3 kg | |||||||
| 15 | Humidification Power (kw) | 0.5 | |||||||
| 16 | Temperature control range (°C) | 17—30 | |||||||
| 17 | Humidity control range (RH%) | 45—75 | |||||||
| 18 | Temperature control accuracy (°C) | ±2 | |||||||
| 19 | Humidity control accuracy (RH%) | ±5 | |||||||
| 20 | Indoor unit | Evaporator type | Copper tube with aluminum fins | ||||||
| 21 | air filter | G4 Level Initial Effect | |||||||
| 22 | Indoor fan type | EC fan | |||||||
| 23 | External dimensions (mm) | W | 300 | ||||||
| 24 | D | 1200 | |||||||
| 25 | H | 2000 | |||||||
| 26 | Unit weight (Kg) | 160 | |||||||
| 27 | outdoor unit | Condenser type | Copper tube with aluminum fins | ||||||
| 28 | Number of outdoor units (units) | 1 | |||||||
| 29 | Outdoor unit weight (Kg) | 60 | |||||||
| 30 | External dimensions (mm) | W | 960 | ||||||
| 31 | D | 280 | |||||||
| 32 | H | 800 | |||||||
| 33 | other | Indoor unit air supply method | Front Horizontal air supply | ||||||
| 34 | Gas tube dimensions (φmm) | 12 | |||||||
| 35 | Liquid tube dimensions (φmm) | 10 | |||||||
| 36 | Recommended to use the main cable. | 3*4²+2*2.5² | |||||||
| 37 | Cables are used to connect indoor and outdoor units. | 3*1.5² | |||||||
| 38 | Humidifier Inlet Water Pipe (φmm) |
20 | |||||||
| 39 | Condensate Drain Pipe (φ mm) | 25 | |||||||
| 40 | Remote control system interface | RS485 | |||||||
| 41 | It has a power failure memory function | Automatic power-on after power failure and reset | |||||||
